FIFA System

Synthetic Turf

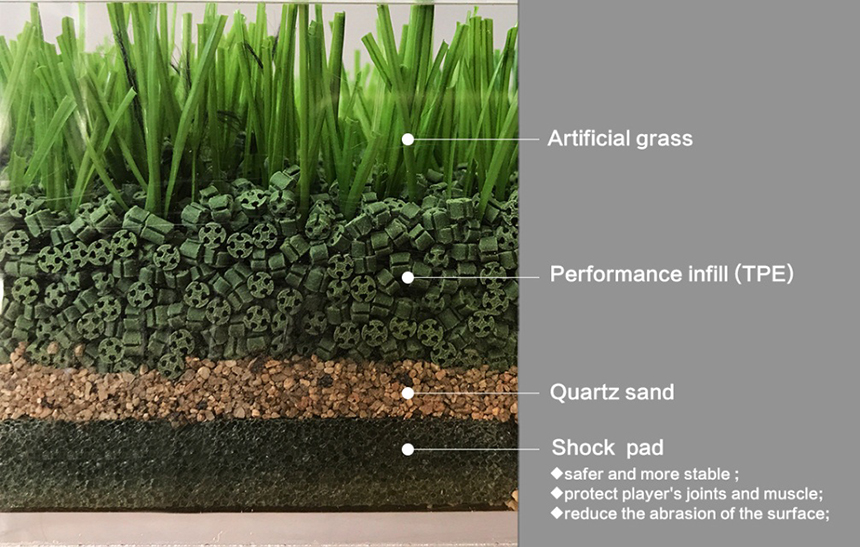

FIFA certificated product—EN JOY 50MM

Uses	Soccer, Football, etc
Colors	Fieldgreen, White
Packaging	Roll Widths	4.00m;2.00m
	Roll Length	on request
Turf characteristics	Composition	Polyethylene
	Structure	Ten Cate Thiolon®, Monofilament
	Yarn count	EN XQ 7700Dtex ±10%
	Yarn thickness	230μm
	Yarn width	1.8mm
	Pile height	50mm ±5%
	Gauge	5/8"
	Number of stitches	190.5 ±10%
	Tuft per m2	12000 ±10%
	Yarn weight	1040g/sqm ±10%
	Tuft withdrawal	≧35N
Backing characteristics	Backing cloth	Double PP woven
	Weight per unit	240sqm
	Type of coating：	SBR (DOW)
	Coating weight	900g/sqm （Dry）
	Total backing weight	1140g/sqm
	Total carpet weight	2180g/sqm ±11%
Test Results	Permanence against UV Rays	W.O.M testing 8,000 hours in accordance with DIN53387
	Fastness of the color	Blue scale (1-8)>7 In accordance with DIN54004
Accessories	Line colors	White
	Line Widths	100mm; 75mm; 50mm
Maintenance	See separate documentation available on request from Torchgrass.
Infill	Bottom layer	Composition: 20kgs/sqm Washed and dried silica sand (90% round)
	Top layer	Composition: 8kgs/sqm TPE rubber granules
Shock Pad	11mm
Warranty	8-10 years （Solar activity in 100-160W/㎡）
We reserve the right to modify these specifications.

FIFA certificated product—EN JOY 55MM

Uses	Soccer, Football, etc
Colors	Fieldgreen, White
Packaging	Roll Widths	4.00m;2.00m
	Roll Length	on request
Turf characteristics	Composition	Polyethylene
	Structure	Ten Cate Thiolon®, Monofilament
	Yarn count	EN XQ 7700Dtex ±10%
	Yarn thickness	230μm
	Yarn width	1.8mm
	Pile height	50mm ±5%
	Gauge	5/8"
	Number of stitches	200 ±10%
	Tuft per m2	12600 ±10%
	Yarn weight	1190g/sqm ±10%
	Tuft withdrawal	≧35N
Backing characteristics	Backing cloth	Double PP woven
	Weight per unit	240sqm
	Type of coating：	SBR (DOW)
	Coating weight	900g/sqm （Dry）
	Total backing weight	1140g/sqm
	Total carpet weight	2330g/sqm ±11%
Test Results	Permanence against UV Rays	W.O.M testing 8,000 hours in accordance with DIN53387
	Fastness of the color	Blue scale (1-8)>7 In accordance with DIN54004
Accessories	Line colors	White
	Line Widths	100mm; 75mm; 50mm
Maintenance	See separate documentation available on request from Torchgrass.
Infill	Bottom layer	Composition: 20kgs/sqm Washed and dried silica sand (90% round)
	Top layer	Composition: Composition: 7kgs/sqm TPE rubber granules
Shock Pad	11mm
Warranty	8-10 years （Solar activity in 100-160W/㎡）
We reserve the right to modify these specifications.

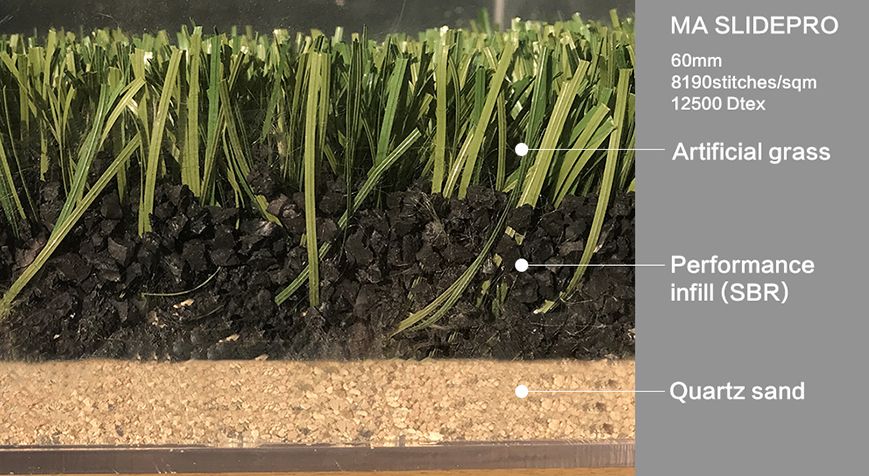

FIFA Approved Products, MA SLIDE PRO-60-13

Uses	Soccer, Football, etc
Colors	Fieldgreen&Olivegreen
Packaging	Roll Widths	4.00m;2.00m
Packaging	Roll Length	on request
Turf characteristics	Structure	Ten Cate Thiolon®, Monofilament
	Yarn count	Mspro12500Dtex ±10%
	Yarn thickness	310μm/130μm
	Yarn width	1.45mm
	Pile height	60mm ±5%
	Gauge	5/8"
	Number of stitches	130 ±10%
	Tuft per m2	8190 ±10%
	Yarn weight	1390g/sqm ±10%
	Tuft withdrawal	≧40N
Backing characteristics	Backing cloth	Double PP woven
	Weight per unit	240sqm
	Type of coating：	SBR (DOW)
	Coating weight	900g/sqm±10% (Dry)
	Total backing weight	1140g/sqm
	Total carpet weight	2530g/sqm ±11%
Test Results	Permanence against UV Rays	W.O.M testing 8,000 hours in accordance with DIN53387
Test Results	Fastness of the color	Blue scale (1-8)>7 In accordance with DIN54004
Accessories	Line colors	White
Accessories	Line Widths	100mm; 75mm; 50mm
Maintenance	See separate documentation available on request from Torchgrass.
Infill	Bottom layer	Composition: 18kgs/sqm Washed and dried silica sand (90% round)
Infill	Top layer	Composition: 15kgs/sqm recycled black rubber granules
Warranty	8-10 years （Solar activity in 100-160W/㎡）
We reserve the right to modify these specifications.
